(주)선광코리아 - 태그트레일러

제품소개

산업기계와 중장비부품 생산을 전문으로 적재함 자동덮개와 풀트레일러 제작

제품사양

선광코리아(주)

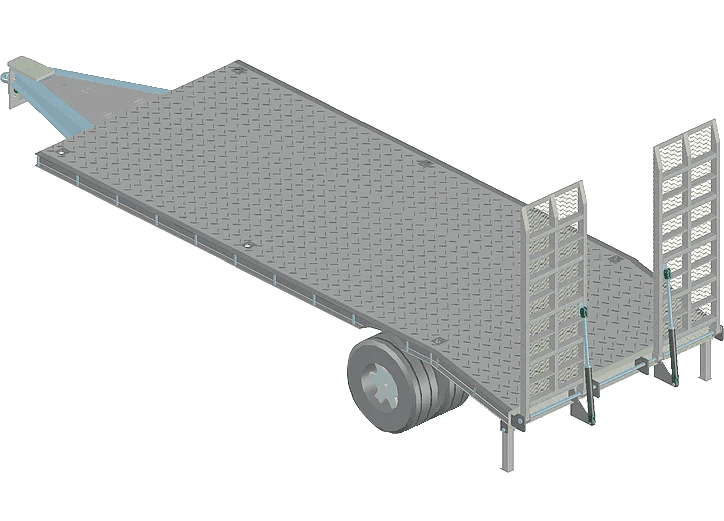

Deck	5m Deck + 1m Beavertail
Width	2.46m
Drawbar	1.6m Built in Draw-bar
Floor	5mm Checker Plate
Ramps	2000mm x 750mm Spring Assisted
Available Stock(s)	1
Chassis	250UB Heavy Guage
Cross Member	4 x 250UB Heavy Gauge
Coaming Rail	125 Channel
In Deck Tie points	6 x Bisalloy Chain Down Points
Suspension	ABS - 9 Leaf Underslung Spring Suspension
Axles	ABS Parallel Bearing - 15" 10 Stud 225 PCD
Brakes	ADR38 ABS "S" Cam Air with Auto Slack Adjusters
Tyres	235R 75 x 17.5" Low Profile
Rims	17.5" All Steel (10 Stud)
Spare Wheel	Optional Upgrade
Lights	LED
Coaming Lights	4 LED Lights Down Each Side
Legs	Telescopic Manual Front Leg
Hitch	Pintle Hook, Bartlett Ball, Flying Saucer etc
Hitch Height	To suit customer specifications
Safety Chains	16mm - ADR62 specifications
Deck Height	940mm
Water Tank	Optional Upgrade
Toolbox	Optional Upgrade
Gross ATM	9T
Tare (Empty)	2.5T - 2.8T

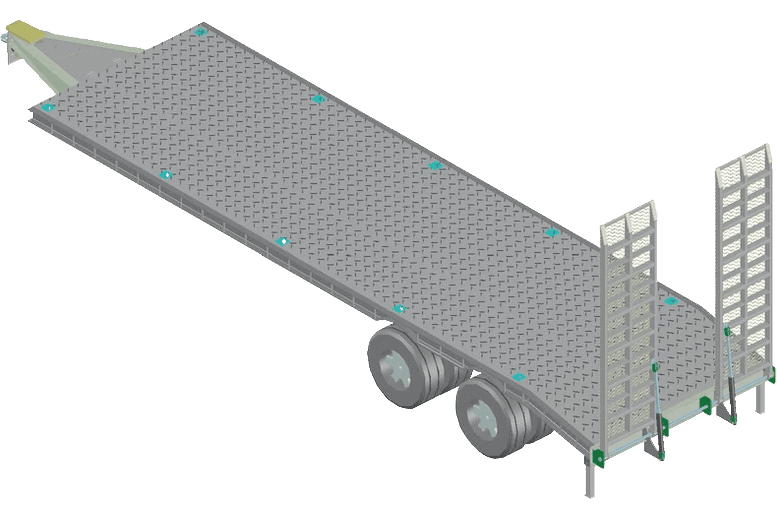

Deck	Up to 7.5m Deck + 1m Beavertail
Width	2.48m
Drawbar	1.6m Built in Draw-bar
Floor	5mm Checker Plate
Ramps	2800mm x 750mm Hydraulic Ramps
Available Stock(s)	2
Chassis	310UB Heavy Duty With 50mm Pre Camber
Cross Member	310UB Heavy Gauge
Coaming Rail	150 Channel
In Deck Tie points	8 x Bisalloy Chain Down Points
Suspension	ABS - 9 Leaf Underslung Spring Suspension
Axles	ABS Parallel Bearing - 15" 10 Stud 225 PCD
Brakes	ADR38 ABS "S" Cam Air with Auto Slack Adjusters
Tyres	235R 75 x 17.5" Low Profile
Rims	17.5" Polished Outers / Steel Inners (10 Stud)
Spare Wheel	Spare Wheel & Wind up rack
Lights	LED
Coaming Lights	5 LED Lights Down Each Side
Legs	Telescopic Hydraulic Front Leg
Hitch	Pintle Hook, Bartlett Ball, Flying Saucer etc
Hitch Height	To suit customer specifications
Safety Chains	16mm - ADR62 specifications
Deck Height	980mm
Water Tank	20L Polished Water Tank (optional)
Toolbox	Blk Powder Coated - 900(L)x450(H)x450(D)mm
Gross ATM	20T - 25T
Tare (Empty)	4T - 7T
